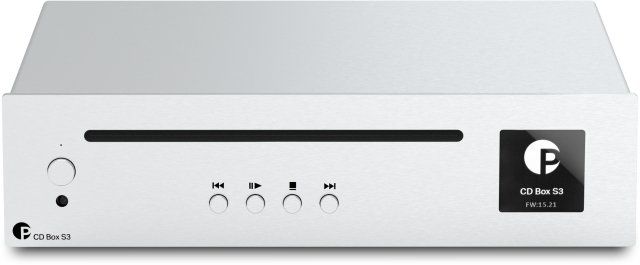

CD Box S - Project Box
The CD Box S (as well as bigger CD Box DS model) from Pro-Ject Box Design has been created exclusively to play "Red Book", standard audio CDs. It's construction and meticulous design is such that it excels in this discipline. In addition to a high-quality, durable drive that is essential for optimal CD playback, the CD Box S also has s servo control optimized for audio playback.
The high-quality servo system employed allows real-time scanning with minimal jitter. Together with the proven D/A converter, the CD Box S is capable of a faithful reproduction of your favourite CD albums. But to further customise it to higher-priced systems, Pro-Ject's introductory CD player also offers an S/PDIF output, in order to connect to a better, high-end D/A converter as well.
Key Features:
Slimline, dedicated Hi-Fi CD player
CD, CD-R, CD-RW, Hybrid SACD playback
24-bit / 96kHz DAC built-in, for precise playback of Audio-CDs
Coaxial S/PDIF digital output
Robust and reliable all-metal CD transport
Slot-in CD mechanism
Servo board optimized for 1:1 playback of CDs
Direct I²S digital-interface to DAC
Supplied remote control capable of volume level adjustment on Pro-Ject amplifiers
Metal casing protects against vibration and interference
Gold plated RCA connection sockets
Faceplate available in silver or black
Technical Data:
Supports: CD, CD-R, CD-RW and Hybrid-SACD
Frequency Response: 20Hz - 20kHz / -0.3dB
Noise Floor: 96dB / 1V
THD: 0.01%
Line-Level Output: 1 Pair RCA/Phono Sockets
Output Voltage: 1Vrms
Digital Output: 1 x Co-Axial (S/PDIF)
D/A Converter:
Texas Instruments TLV320DAC23
24Bit/96kHz, 8x Oversampling
Outboard PSU: 9V / 2,000mA DC
Standby Power Usage: < 1W
Dimensions (W x H x D):206 x 36 x 150
206 x 36 x 156 (Incl. Sockets)
Weight: 1,260g (Without PSU)
