CD Box DS - Project Box

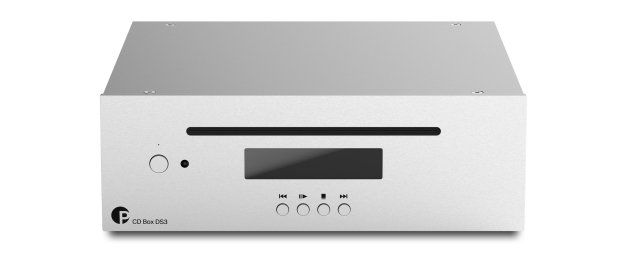

The CD Box DS is a high end CD player designed for dedicated play back of the “Red Book Standard” of audio CD developed by Philips.
Built with a high quality, durable CD drive that is controlled by a Blue Tiger Servo board, the CD Box DS is designed to read CDs perfectly without need for any error correction and minimal jitter. The CD Box DS’s on board D/A converter boasts a Burr Brown 24-bit/192kHz chip, with eight-times oversampling that delivers a true high end quality for play back of your CDs.
An easy to read high contrast dot matrix and a handy credit card remote make the CD Box DS simple and a joy to use.

Availability: In stock

Key Features:

  • Burr Brown D/A converter
    High quality CD-drive
    CD, CD-R, CD-RW, and Hybrid SACD playback
    24bit / 192kHz DAC from Burr-Brown
    4-layer suspended CD drive
    “Blue Tiger” Servo-Board for 1:1 CD playback
    Luxurious slot-in mechanism
    High-contrast dot-matrix display
    Solid cabinet protects electronics and drive against vibration
    Gold-plated RCA output connections
    Digital output (RCA)
    External power supply included
    Remote control supplied
    Available in Black or Silver

Technical Data:
Supports: CD, CD-R, CD-RW And Hybrid-SAC
Frequency Response: 20Hz - 20kHz, ±0,15dB
Noise Floor: >103dB / 1V
Line-level Output: 1 Pair RCA/Phono Sockets
Output Voltage: 2Vrms
Digital Output: 1x Coaxial (S/PDIF)
D/A converter: Burr Brown PCM 1796
24Bit/192kHz, 8-Times Oversampling
Outboard Power Supply: 18V/500mA DC; 220 - 240V, 50Hz
Standby Power Consumption: < 1 Watt
Power Consumption: 330 - 400mA DC
Dimension W x H x D (D With Sockets): 206 x 72 x 194 (200)mm
Weight: 2670g Without PSU
