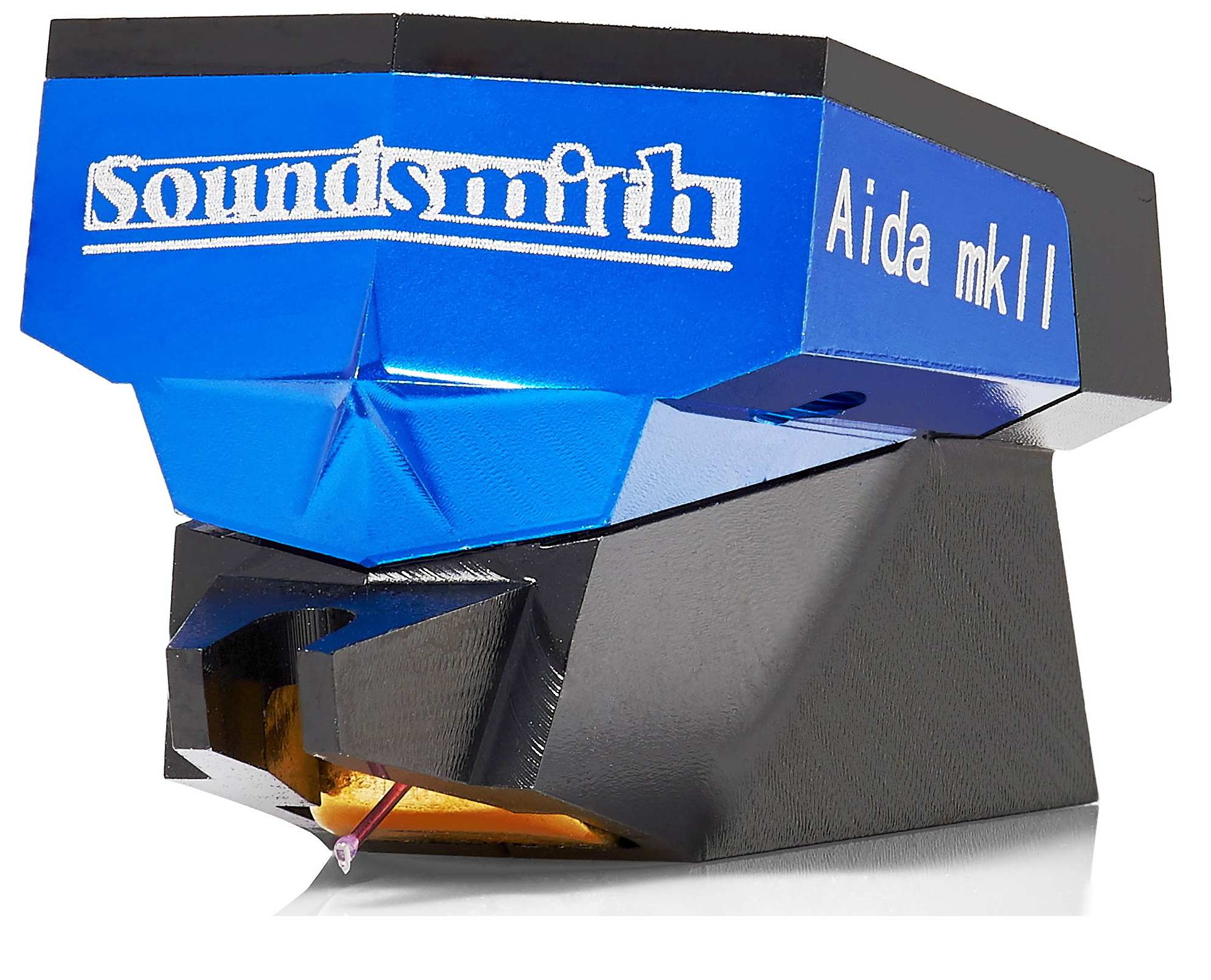

Soundsmith Aida Cartridge

We are not permitted to offer this brand of cartridge outside the UK.

Soundsmith Aida Cartridge

Soundsmith Aida  £1,699

Add to Cart

The Aida employs a Sapphire laser drilled cantilever and ultra low mass Contact Line solid nude diamond stylus. This configuration resolves the challenges of playing the inner grooves with the same level of confidence as the outer. How did we do this? The unique stylus shape of our CL stylus has a “sharper” playing surface on the faceted diamond, allowing it to ride easily in the groove modulations of even the most difficult passages and high frequency information that other cartridges simply cannot trace. The result – a truly superb cartridge, surpassing top MC designs with air, focus and sound staging no cartridge at this price should be able to achieve.

Also available in dual-coil mono.

Made in  the USA.

Rebuild Price?  Less Than 20% of MSRP, as always ! – The Aida features a 2 year warranty to the original owner.

Why a fixed coil cartridge?

Long term investment due to rebuild

Reviews

“Looking For Your Last Best Cartridge? This Could Be It, At A Decent Price!”
Audio Ideas

Specifications

  • Cartridge Type: Fixed Coil
  • Output: High
  • Available As Dual Coil Mono: Yes
  • Stylus: Contact Line Nude, 0.100mm SQ
  • Radius of curvature: OCL (Optimized Contour Contact Line)
  • Cantilever: Ruby
  • Recommended tracking force: 10mN / 1.0 gm (high), 13mN / 1.3 gm (medium)
  • Effective tip mass: 0.30 mg
  • Compliance: 28 μm/mN (high), 22 μm/mN (medium)
  • Frequency response: 20-20,000 Hz ± 2.5 dB
  • Channel separation (stereo only): 1000 Hz >30 dB, 50-15,000 >20 dB
  • Channel difference: <1.0 dB (Stereo), <1.0 dB (Mono)
  • Output voltage (Aida): 2.12 mV
  • Cartridge weight: 6.8 grams
  • Loading (Aida): ≥ 47 kΩ
