Record Player Motor Kit Options in detail

Each complete kit includes motor, transformer, speed control box. To provide greatly enhanced performance there are optional grades for each of these components as shown below. To list the best upgrade path for any given price point you will find a list of combinations under “options” on the overview page.

Motor Speed Control Box in 3 grades

The switch box controls the turntable motor with infinitely variable speed setting to accomodate any record player.

Standard  £255

Standard Speed Control Box

For those with limited budget or a low-value record player, this provides the solution to your deck running. As an added bonus it also provides an upgrade to the AC motors commonly used in most older record players. There are very significant sonic improvements. However the standard speed control box does not achieve the speed accuracy of the higher  boxes or their sonic performance. The measured speed accuracy of the Standard version on an average turntable is plus or minus 0.4% from the start of the record to the end. To put this in perspective some popular decks run at 0.8% drift.

Add to Cart

Advanced Speed Control Box

The Advanced speed control box represents extraordinarily high value for money. The circuitry is far in advance of the Standard model by virtue of load and temperature compensation which ensures much better constant speed across the whole record. Improved dynamics and clarity are other very obvious benefits with speed accuracy around plus or minus 0.2% from start to finish of a record.

Add to Cart
Ultra Switch Box

Ultra Switch Box £582

Ultra Speed Control Box

The Ultra Speed Control Box offers higher performance than the Advanced Box thanks to it’s faster-functioning circuit along with improved regulation and lower noise. Additional features include uprated components and heat-sink. All this contributes to a more cohesive and musical sound with greater resolving power.

Add to Cart

Turntable Motor Options

Motors vary significantly in cost, power and performance so we offer choice.

DC 100 Turntable Motor

This motor is supplied as standard with all motor kits unless a higher motor option is chosen. In spite of it’s relatively low cost, the DC100 is a big step up from the the synchronous AC motors commonly used in most turntables. If you want a higher performance motor than the DC100, it pays to order it with the kit. This saves the cost of the DC100 which would be redundant should you decide to change motor at a later date. For warranty reasons we cannot offer part exchange on old motors.

If you already own a dc motor kit and wish to order individual items see Spares and upgrades

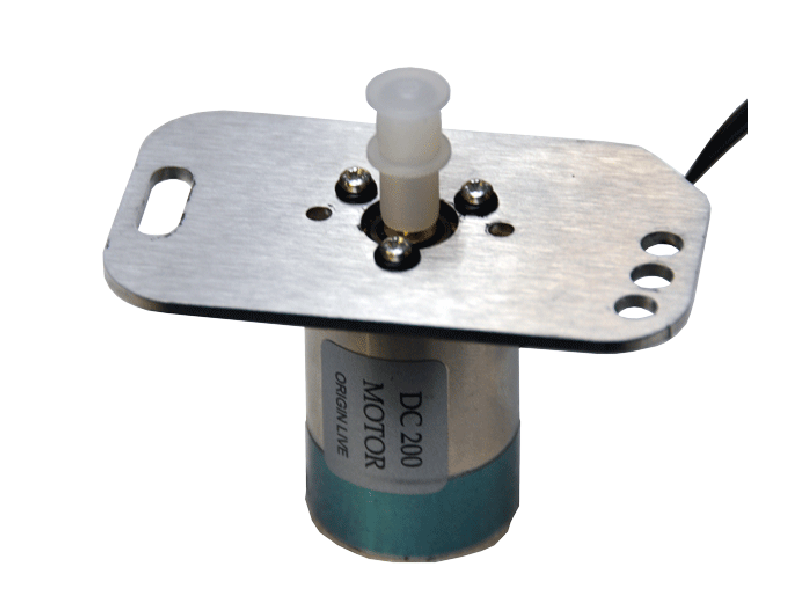

DC 200 Record Player Motor

The DC200 record player motor is smoother, quieter and double the power (Torque) of the DC100. Subjectively you hear more power in the music with bass in particular gaining in slam, depth and resolution. Dynamics and resolution across all frequencies improve along with all other aspect of music. This is a massive upgrade.

If you already own a dc motor kit and wish to order individual items see Spares and upgrades

DC 300 Turntable Motor

The DC300 Turntable Motor offers the ultimate in terms of performance, delivering a clear improvement in dynamics and power over the DC200. With higher Torque (power) the results are clearly audible with all the usual characteristics of improved motor drive. This is a very high grade powerfull motor with double the power (Torque) of the DC200 ( 4 times the power of the DC100). Subjectively you hear the same improvements that the DC200 makes over the DC100. Namely, more power in the bass with greater slam, depth and resolution. Dynamics and resolution across all frequencies improve along with all other aspect of music.

If you already own a dc motor kit and wish to order individual items see Spares and upgrades

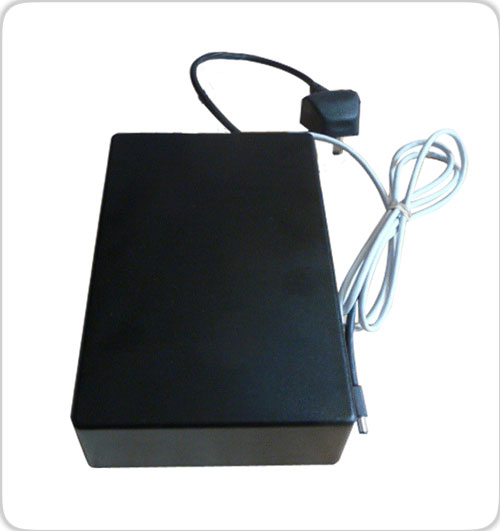

Fully Balanced Upgrade Transformer Option

 A better power supply makes a big difference to Amplifiers. Turntable motors are no different. The fully balanced upgrade transformer is a specially wound, low impedance, large Toroid transformer with high instantaneaous current delivery. The performance of the Origin Live designed transformer is far superior to any normal Toroid transformer due to it’s fully balanced configuration and other major factors not present in standard transformers.

A normal low power turntable transformer is included as standard with all kits unless the Upgrade Transformer is chosen. The Upgrade Transformer features an extremely advanced, purpose built, fully balanced transformer housed in an outboard enclosure. The larger transformer offers significant benefits. It isolates and cleans the mains whilst massively increasing instantaneous current delivery. The results are improved transparency, dynamics and deeper bass.

If you have an existing motor  kit with a standard transformer, then the upgrade transformer offers significant performance improvements. It’s also simple to install as the connections are the same, allowing a straight substitution.

If you already own a dc motor kit and wish to order individual items see Spares and upgrades

Standard Low Power Transformer

This transformer is supplied as standard with all kits. The photo opposite is representative as actual item can vary slightly in appearance.

If you already own a dc motor kit and wish to order individual items see Spares and upgrades

UPGRADE OPTIONS TO GIVE MAXIMUM RETURN ON INVESTMENT

  • Option 1     Standard Speed control box    |  DC100 Motor  |  Wallwart mains voltage reducer £255
  • Option 2    Advanced Speed Control Box  |  DC100 Motor  |  Wallwart mains voltage reducer  £345
  • Option 3   Advanced Speed Control Box   |  DC200 Motor  |  Wallwart mains voltage reducer = total £475
  • Option 4    Advanced Speed Control Box  |  DC200 Motor  |  Fully balanced round Mains transformer £595
  • Option 5    Advanced Speed Control Box  |  DC200 Motor  |  Fully balanced, low noise Large Upgrade Transformer  £815
  • Option 6    Advanced Speed Control Box  |  DC300 Motor  |  Fully balanced, low noise Large Upgrade Transformer £960
  • Option 7    Ultra Speed Controller Box      | DC300 Motor  |  Fully balanced Upgrade transformer = £1185

Note that it’s possible to upgrade each of the items individualy at a later date – See Products > Spares & Upgrades > DC motor kits. Be aware that you can only use these items in the context of the Origin Live Motor kit as they are incompatible individually with other brand motor drive systems.
