Michell Gyrodek Motor & Power Supply Fitting Instructions

Disconnect all wires.

  • Measure the height from top of rubber belt down to top of gyrodeck pod (10,5mm). This distance is needed when adjusting height of new pulley.
  • Remove rubber belt from pulley.
  • Remove pulley (small screw)
  • Remove nut holding past motor Axel to pod (not present on some decks)
  • Unscrew Allen screw on top of pod.

It is now feasible to lift up pod.

On some Michell decks the motor is encased by rubber – this needs to be sliced off as a last resort but it may be possible to lever the rubber out along with the motor – the rubber is held in by a “lip” and glued to the motor pod.

  • Cut wires leading from the socket (under the deck) at the switch screwed to the top of the pod (blue/green/brown). These wires need to be as long as possible. Then cut the wires leading to the motor from the switch. The old motor can now be removed. The switch can either be left or removed. It is not going to be used anymore as the on/off switch is located in the new Origin Live control box.

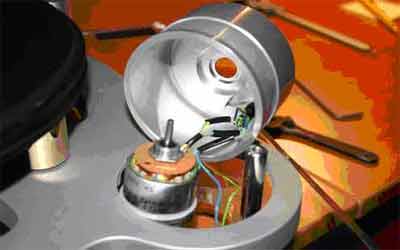

  • Remove top of pod from casing.

  • Top of pod consists of 2 plates bonded together by means of rubber washers It is necessary to use force to part these plates. Smallest plate is redundant.

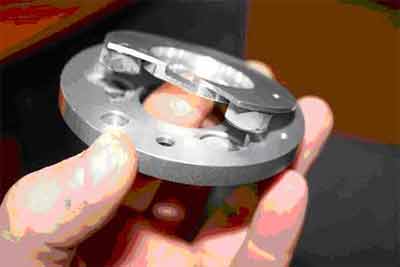

  • Top plate for new motor is removed from motor by unscrewing 3 small screws on top.
  • Drill and tap a hole in top pod plate.

NOTE: on later Michell pods the top plate does not split off the main pod but the principle for fitting are similar.

  • Centre top motor plate to top pod plate and drill hole in motor plate through the already drilled hole.
  • Fix to plate to each other with one screw and nut.

  • Fix motor to its original position
  • Solder blue wire to positive motor lead (white line) and brown to negative lead.

  • Assemble motor, casing and pod then fasten the Allen screw

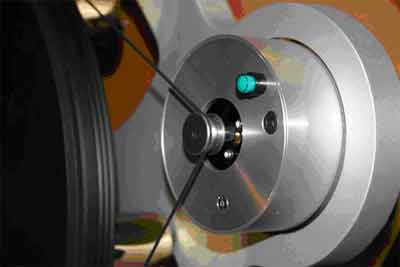

  • Install pulley and rubber belt. Push pulley down to same distance as measured under item 1. Rubber band must run level between pulley and turntable.

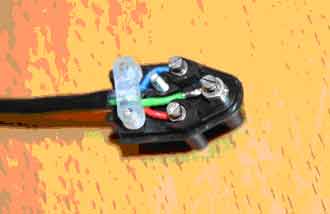

  • Existing power supply connection can be used to supply power to the new motor. Cut wire supplied with motor .Connect black/white lead to where the blue lead was connected. Connect the black lead to where the read lead was connected. Connect other end to motor control box.

You have now finished fitting the motor.
