Hana Cartridges
We are not permitted to offer this brand of cartridge outside the UK.
The Hana Range
Our range of Hana moving coil cartridges are manufactured in Japan. Made by Excel Sound Corporation, and based in Tokyo, they focus on superb build quality at competitive prices. They offer some of the best value for money cartridges on the market today.
…
…
…
…
…
…
…
Hana Cartridge Range Comparison

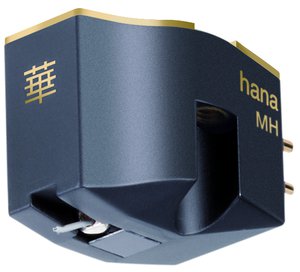

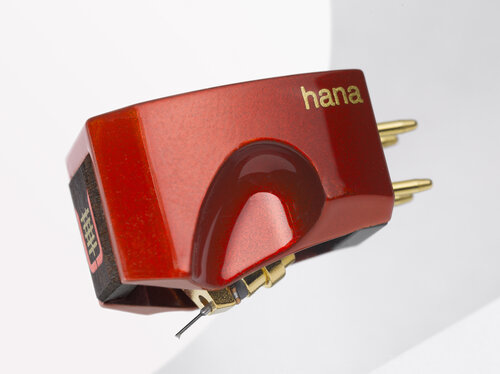

| Cartridge | Umami | Hana ML | Hana MH | Hana SL | Hana SH | Hana EL | Hana EH |
| Stylus | Microline | Microline | Microline | Nude Diamond Shibata | Nude Diamond Shibata | Synthetic Elliptical | Synthetic Elliptical |
| Cantilever | Boron | Aluminum | Aluminum | Aluminium | Aluminium | Aluminium | Aluminium |
| Output Level | 0.4 mv | 0.4mv/1kHz | 2mv/1kHz | 0.5mv/1kHz | 2mv/1kHz | 0.5mv/1kHz | 2mv/1kHz |
| Output Balance | <0.5/1kHz | <1dB/1 KHz | <1dB/1 KHz | <1.5dB/1KHz | <1.5dB/1KHz | <2dB/1KHz | <2dB/1KHz |
| Vertical Tracking force | 2g | 2g | 2g | 2gr | 2gr | 2gr | 2gr |
| Trackability | 70 µm/2g | 70 µm/2g | 70 µm/2g | 60um/2gr | 60um/2gr | 60um/2gr | 60um/2gr |
| Channel Separation | 30dB/1kHz | 30dB/1kHz | 30dB/1kHz | 25dB/1KHz | 25dB/1KHz | 22dB/1KHz | 22dB/1KHz |
| Frequency Response | 10-50,000Hz | 12-45,000Hz | 12-45,000Hz | 15-32,000HZ | 15-32,000HZ | 15-25,000HZ | 15-25,000HZ |
| Impedance | 6Ω/1kHz | 7Ω/1kHz | 130Ω/1kHz | 30Ω/1Khz | 130Ω/1Khz | 30Ω/1Khz | 130Ω/1Khz |
| Suggested load Impedance | > 60Ω | >100Ω | 47kΩ | 400Ω | 47KΩ | 400Ω | 47KΩ |
| Cartridge Weight | 10.5g | 9.5g | 9.5g | 5gr | 5gr | 5gr | 5gr |
| Body Colour | Gloss Urushi Lacquer/ Red | Black w/Brass Plate | Black w/Brass Plate | Black | Black | Moss Green | Moss Green |
